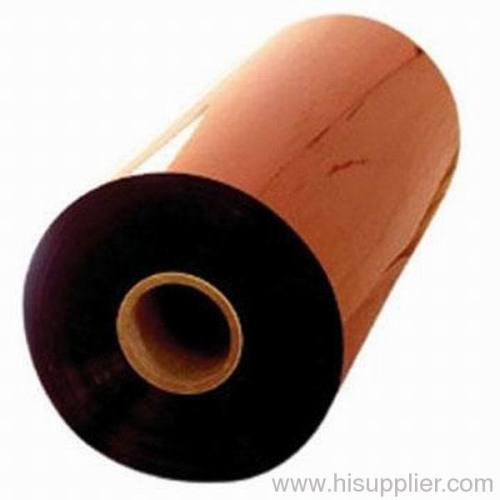

kapton film pi film polyimide film 6051 from China manufacturer

Price:	28.0~45.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 6051

Production Capacity: 300Ton/Year

Delivery Date: 10 days after 30% TT deposi...

F46,FEP,CR,FCR: CR corona resistance

Acrylic Adhesive/silicone adhesive: ISO9001,UL Approved

Means of Transport: Ocean,Land,Air

Packing: in rolls and wound up to th...

amber,gold,brown: 6051 6052

kapton polyimide: H,HN,FH,FHF

1.20 years experience for producing polyimide film
2.Thickness:1mil-5mil
3.UL,ISO9001
4.OEM&ODM accepted
5.Five product line

The polyimide film is produced by adopting "Doctor-blading process". It possesses hot-resistant, radiation resistant and excellent dielectric performance and applies to motor Grade H. electrical insulation as well

as the electric engineering insulating materials for other usage.

Specifications Smooth and bright film surface. The defects of folding, broken, particulate air bubble, pinpoint and foreign

impurities, tidy edges and non damage the film provided in rolling.

Excellent properties:

mechanical and electrical properties;

chemical stability;

radiation-resistance;

heat-resistance;

low-temperature resistance.

Application:

It is widely applicable to various fields, like aviation, navigation, spaceship, rocket missile, atomic energy and electrical and electric industry.

Technical Index:

No.	Test Item		Unit	Standard
				25μm	30μm	40μm	50μm	75μm	100μm
1	Density		g/cm³	1.400±0.020
2	Tensile Strength	Vertical	MPa	≥135
		Horizontal		≥115
3	Elongation ratio	Vertical and Horizontal	%	≥35
4	Shrinkage 150°C 400°C		%	≤1.0 ≤3.0
5	Frequency Electrical Intensity	Average Value	MV/m	≥150				≥130	≥110
		Individual Value		≥100				≥80	≥70
6	Surface Resistivity (200°C)		Ω	≥1.0X10¹³
7	Volume Resistivity (200°C)		Ω·M	≥1.0X10¹⁰
8	Relative Dielectric Constant 48-62Hz			3.5±0.4
9	Dielectric Loss Factor 48-62Hz			≤4.0X10^-3
10	Long-term Heat-Resistance Temperature Index			≤180

Our Factory Competitive Advantages

*Well Competitive Prices and High Quality Control

*Prompt Delivery

*Customer's Design and Logo are Welcome

*Fit for Gifts and Premiums

*Earth-friendly Products

*In a Variety of Design

Small Order Acceptable

*OEM Accepted

About factory:

Jiangsu Yabao Insualtion Material Co., Ltd. was established in 1986,

specializing in producing insulation materials: i.e.

Polyimide film series:	Polyimide Film 6051 Corona-resistant Polyimide Film (CR Film) Polyimide Film with F46 (FEP) Tape
Adhesive tape series	Polyimide Film with Acrylic Adhesive Tape Polyimide Film with Silicone Adhesive Tape
Composite material series	Composite material (NHN, NMN) Mica insulation material (mica tape, mica foil and mica board).

Packing, Mark, Preservation and Transportation

1. The film should be provided in rolls and wound up to the pipe core, each roll is well packed and loaded with plastic bag to be placed into dry and clean box.

2. The each box packing should be marked with the type, product specification, size, lot number, gross weight, net weight, date of manufacture, name of the manufacturer and the product acceptances certificate is attached. At the same time the painting words of Damp-proof collision-proof etc.

3. The should be pressured in dry and clean room, the preservation period from the date of production is two years and can still be used when it is qualified in case of the preservation period is exceeded and checked according to standard.

4. During the preservation and transportation, damping and mechanical damage should be avoid
