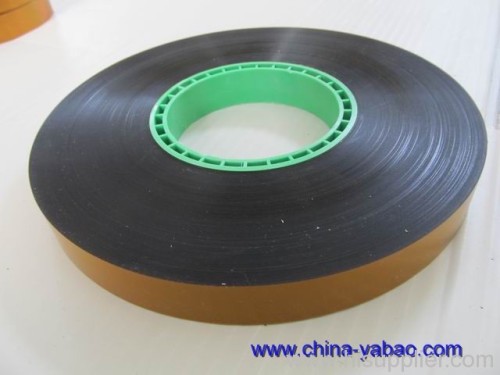

Technically Unique Biaxial Oriented Kapton/Polyimide/PI Film with High Performance

Price:	38.0~120.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 6052

Production Capacity: 300Ton/Year

Delivery Date: 10 days after 30% TT deposi...

Means of Transport: Ocean,Land,Air

Packing: in rolls and wound up to th...

amber,gold,brown: 6051 6052

5 lines&20 years experience of producing polyimide film
ISO9001,UL
Accept OEM&ODM
Adopt Biaxial Oriented Stretch Process

BOPI Polyimide film Kapton film(similar to Kapton HN) is achieved by polycondensation of PMDA and ODA in strong polar solvents, through the process of film forming, and then being stretched and Oriented by biaxial during the course of imine at high temperature. BOPI film is a special kind of polyimide film. Because of biaxial orientation process, BOPI film possesses higher physical, chemical, and electrical properties. It is widely used as insulation material in F~H class electric motors, electric locomotive, high temperature cables, backing or cover film of FPCB (flexible printed circuit) applications, aerospace industries and so on.

Characters:

* Higher mechanical strength, better dielectric strength with thinner insulation ply;

* Excellent heat resistance ,used as class- H insulation and can work for a long term at

180°C but short time at 260°C;

* Good flexibility, better tear resistance and excellent workability, and can be glued on the

different-sized workpieces;

* Self-sticking and good bonding strength , no removal after stripping off;

* Different thickness and width to meet customers' specific requirements;

Applications

Temporary bonding of thermocouples for oven profiling

Bonding of devices prior to solder reflow

Splicing of Insulation Layers

Masking in high temperature powder applications

Gold Finger Masking

Insulating circuit boards and coils

Data form

Item	Properties		Unit	Values
			μm	12.5	25		30	40	50	75
1	Density		g/cm3		1.42±0.02
2	Tensile Strength	MD ≥	MPa	160	185		175	160	155	150
		TD ≥		155	170		160	150	140	135
3	Elongation at rapture ≥		%	60
4	Shrinkage (only for reference)	150°C 30min ≤	%	0.15
		400°C 30min ≤		2.0
5	Breakdown Strength (48~62Hz)	Average	MV/m	210		210	190	170	160	150
		Individual		190		190	180	160	135	120
6	*Surface Resistance 200°C		Ω	≥1.0×1013
7	*Volume Resistance 200°C		Ω·m	≥1.0×1010
8	*Dielectric Constant (48~62Hz)		---	3.5
9	*Loss Tangent (48~62Hz)		---	≤0.004

Note:The values noted in above technical specification are given only for our customers' reference and

should not be used in writing specifications.

Our Factory Competitive Advantages

*Well Competitive Prices and High Quality Control *Prompt Delivery

*Customer's Design and Logo are Welcome *Fit for Gifts and Premiums

*Earth-friendly Products *In a Variety of Design

*Small Order Acceptable *OEM Accepted

About factory:

Jiangsu Yabao Insualtion Material Co., Ltd. was established in 1986,

specializing in producing insulation materials: i.e.

Polyimide film series:	Polyimide Film 6051 Corona-resistant Polyimide Film (CR Film) Polyimide Film with F46 (FEP) Tape
Adhesive tape series	Polyimide Film with Acrylic Adhesive Tape Polyimide Film with Silicone Adhesive Tape
Composite material series	Composite material (NHN, NMN) Mica insulation material (mica tape, mica foil and mica board).

Packing, Mark, Preservation and Transportation

The film should be provided in rolls and wound up to the pipe core, each roll is well packed and loaded with plastic bag to be placed into dry and clean box.
